MS: Two Stage Masts

• High performance with limited free-lift.
• Excellent visibility.
• Requires little maintenance.
• Ideal for applications where overhead clearance is not a major factor.

MD: Two Stage Dual Masts with Free-Lift

• Double-stacking capability where overhead clearance is limited.
• Ideal for trailer or box-car loading and unloading.
• The dual is designed for general warehousing applications that have specific height requirements.

MT: Three Stage Masts

• Ideal for applications where high full free-lift and low overhead clearance are key factors.
• The E-Series mast offers high visibility and proven durability.

MQ: Four Stage Quad Masts

• Designed for high stacking requirements.
• Superior strength and stability along with excellent visibility.
• Ideal for the carpet, food and beverage, warehousing and printing industries.
• Lift-Tek quad masts have excellent deflection values allowing use with a wide variety of attachments.
• Available in 3,500, 4,500, 5,500, 8,000 and 10,000 lb. capacities.

MP: Five Stage Mast

• Compact single rail stack design with excellent visibility.
• Full free lift with very tall lift heights (390”) and low collapsed heights.
• Available with ITA class 2 hook carriage or integral carpet pole carriage.
• Can be mounted on 6500, 7000 or 8000 lb. capacity trucks.
• Up to 5,000 lb. capacity at 24” load center.

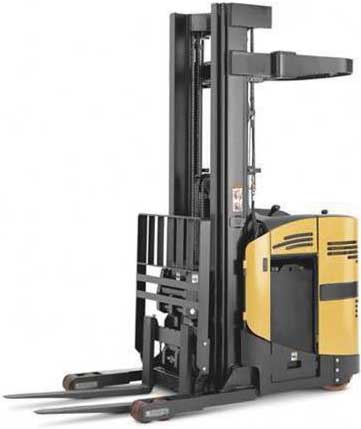

Pantograph Reach Masts

• Available in a wide range of lift heights where precise load handling is required.
• Single or double reach carriage configurations are available.
• Reach and retract cylinder cushioning to ensure smooth and efficient load handling.
• Various base leg sizes, base leg opening widths and wheel box configurations are available.
• Lift height from 146” to 425” (3,708 to 10,795 mm).

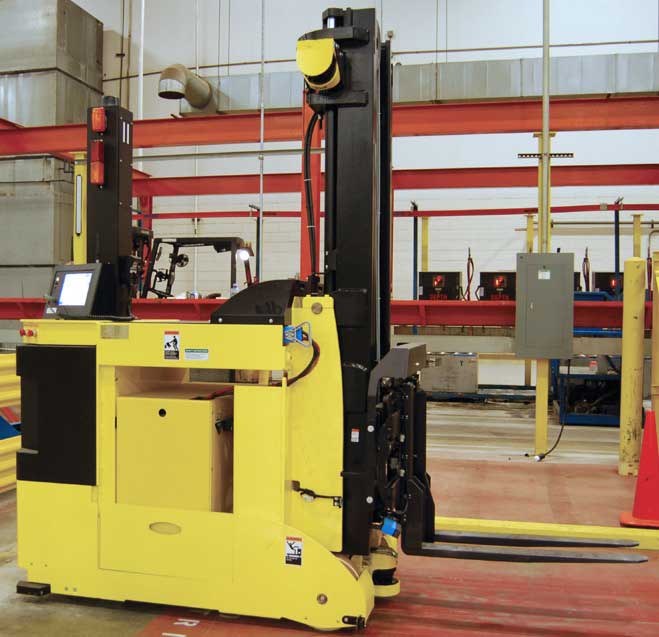

AGV (Automatic Guided Vehicle) Masts

• Used primarily in very narrow aisle applications.
• A variety of carriage or turret options are available to suit the end use application.

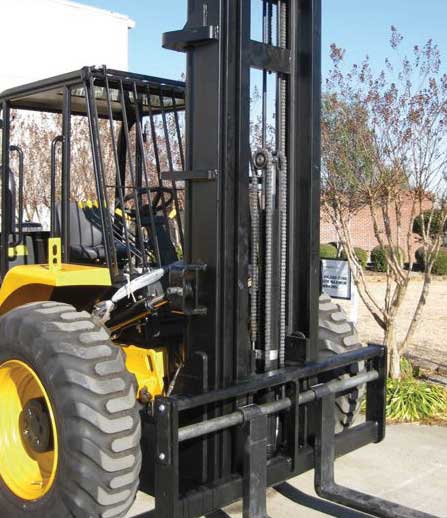

Rough Terrain Masts

• Lift Tek Rough Terrain Masts are available in 6,000 lb., 8,000 lb. and 10,000 lb. capacities.
• Configurations include 18 and 22 foot clearview and freelift masts, 15 foot freelift masts and 12 foot clearview masts.
• All masts are available with a variety of carriages in different widths ranging from 48 to 84 inches wide.
• Standard, side shift and fork positioning carriages are available.
• Carriages are available in floating fork shaft or ITA configurations.
• Lift Tek Rough Terrain Masts are rugged in design and robust in operation.

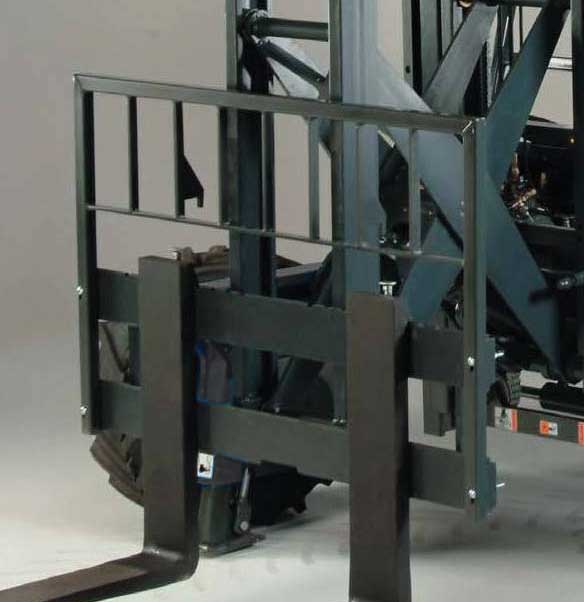

Truck Mounted Masts

• Truck mounted masts are available in capacities up to 7,000 lb.
• A pantograph reach carriage allows complete unloading of a flatbed trailer from one side of the trailer.
